#6 Honda VFR700F2, VFR700F, VFR750F Water Pump Overhaul Kit, Complete like OEM
Rated 3.5/5 based on 11 customer reviews

#6 Honda VFR700F2, VFR700F, VFR750F Water Pump Overhaul Kit, Complete like OEM

Available: 1
$89.95

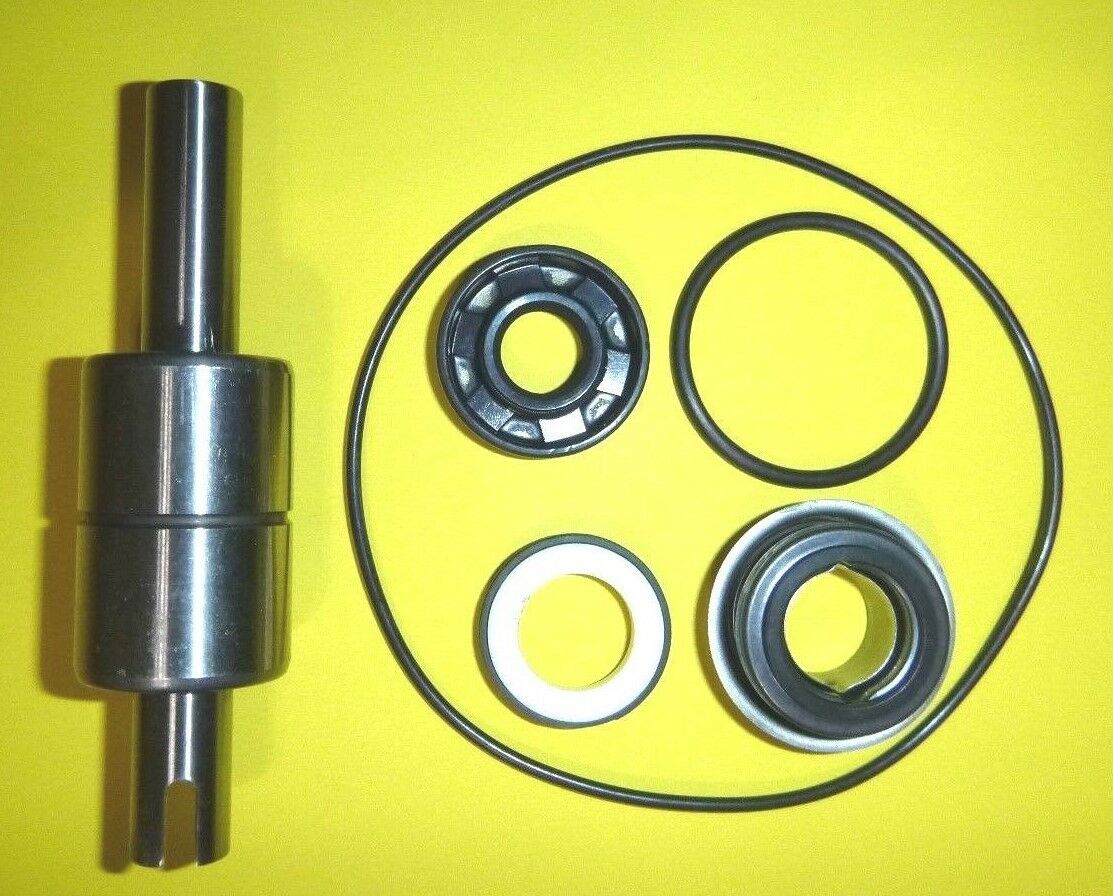

Honda VFR700F2, VFR700F, VFR750F Water Pump Overhaul Kit, Complete like, seal set and O-rings.  This is a kit of all the necessary parts required to overhaul the water pump assembly, P/N 19200-ML7-692, 19200-ML7-690, 19200-ML7-691, 19200-ML7-000

Part # = 19200-ML7-692
Part Description = WATER PUMP - (replaces 19200-ML7-691, 19200-ML7-690, 19200-ML7-000)
Model Count = 8
VFR700F2-G 1986 700 VFR700F2 Interceptor Street
VFR700F2-H 1987 700 VFR700F2 Interceptor Street
VFR700F-G 1986 700 VFR700F Interceptor Street
VFR750F-G 1986 750 VFR750F Street
VFR750F-L 1990 750 VFR750F Street
VFR750F-M 1991 750 VFR750F Street
VFR750F-N 1992 750 VFR750F Street
VFR750F-P 1993 750 VFR750F Street

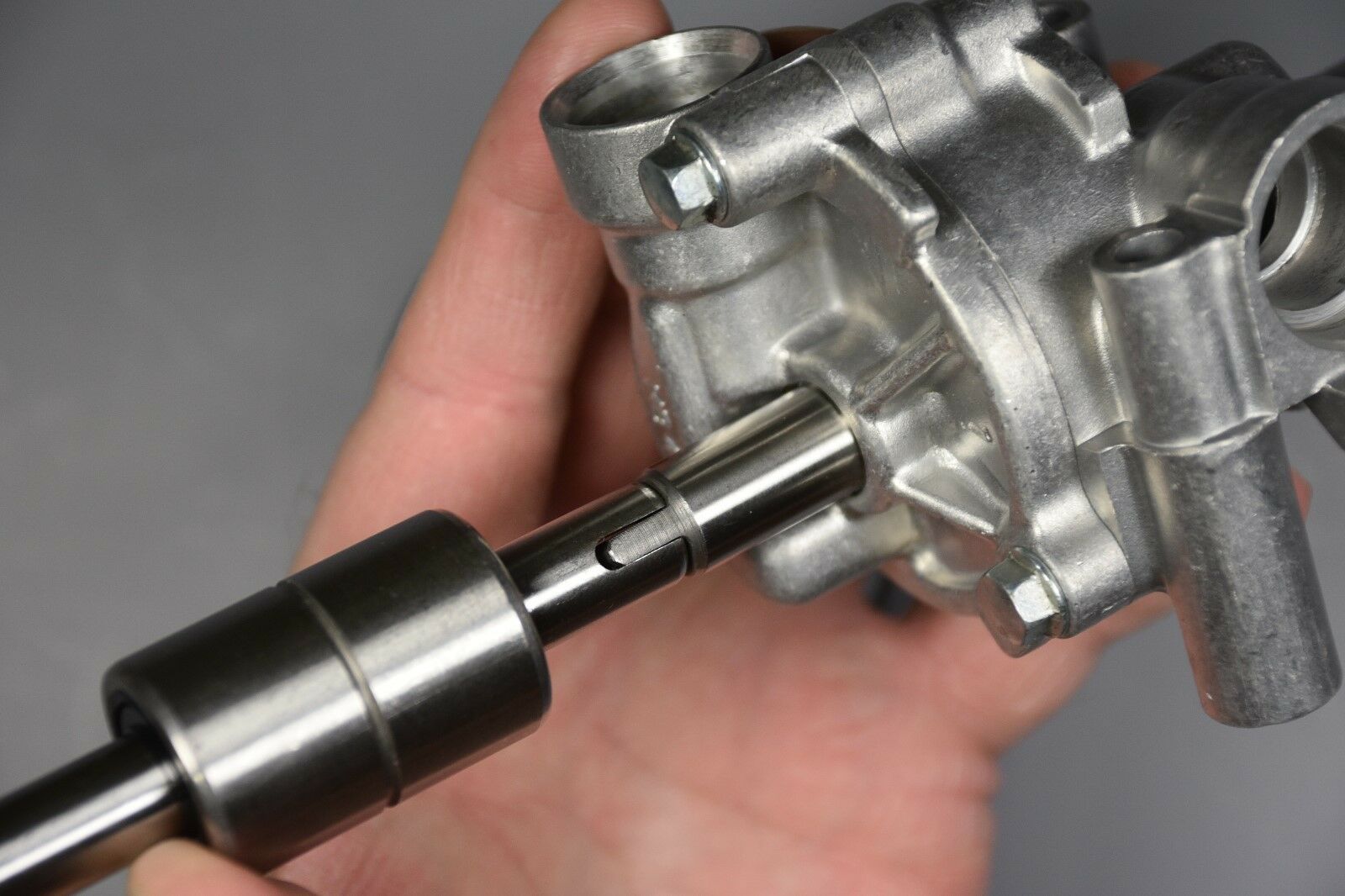

This task WILL require a hydraulic press, it cannot be done any other way.   Please make sure you, and/or your mechanic, understand the requirements to overhaul your pump.  One photo shows the interface with the oil pump, which is critical.

I will include a machined tool with each kit sold that will make this possible, because I designed this tool and manufacture it, I have not included a photo.  lso included is a "How To"  document that will prevent you from making some of the mistakes I have.

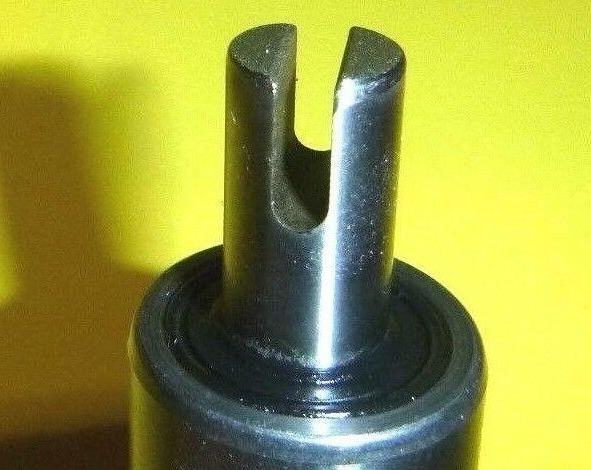

I have spent well over a year working on this and have been able to find a company to manufacture the correct bearing, including the U slot cut precisely with a laser.  It is not machined or ground out with unknown dimensions, it is very accurately centered and fits with the same tolerances as Honda has used.  Also, the main seal is like the one you remove, in that the strip of sealant is applied, blue or green band, so no sealer will be needed there.

The kits I sell do not have a warranty unless you find a defective part before assembly.  The advantage of having me rebuild your pump, or purchasing an exchange pump is that I will give you a lifetime warranty.  If the pump ever leaks at the weep hole, I will repair and ship back to you at no charge.  This does NOT cover the cost of removing the pump, shipping back to me or ANY misc. damage.  Do remember it is up to you to maintain the cooling system in very good working order and always use distilled water when mixing with antifreeze.

Thanks, stay cool......

Honda VFR700F2, VFR700F, VFR750F Water Pump Overhaul Kit, Complete like, seal set and O-rings.  This is a kit of all the necessary parts required to overhaul the water pump assembly, P/N 19200-ML7-692, 19200-ML7-690, 19200-ML7-691, 19200-ML7-000

Part # = 19200-ML7-692
Part Description = WATER PUMP - (replaces 19200-ML7-691, 19200-ML7-690, 19200-ML7-000)
Model Count = 8
VFR700F2-G 1986 700 VFR700F2 Interceptor Street
VFR700F2-H 1987 700 VFR700F2 Interceptor Street
VFR700F-G 1986 700 VFR700F Interceptor Street
VFR750F-G 1986 750 VFR750F Street
VFR750F-L 1990 750 VFR750F Street
VFR750F-M 1991 750 VFR750F Street
VFR750F-N 1992 750 VFR750F Street
VFR750F-P 1993 750 VFR750F Street

This task WILL require a hydraulic press, it cannot be done any other way.   Please make sure you, and/or your mechanic, understand the requirements to overhaul your pump.  One photo shows the interface with the oil pump, which is critical.

I will include a machined tool with each kit sold that will make this possible, because I designed this tool and manufacture it, I have not included a photo.  lso included is a "How To"  document that will prevent you from making some of the mistakes I have.

I have spent well over a year working on this and have been able to find a company to manufacture the correct bearing, including the U slot cut precisely with a laser.  It is not machined or ground out with unknown dimensions, it is very accurately centered and fits with the same tolerances as Honda has used.  Also, the main seal is like the one you remove, in that the strip of sealant is applied, blue or green band, so no sealer will be needed there.

The kits I sell do not have a warranty unless you find a defective part before assembly.  The advantage of having me rebuild your pump, or purchasing an exchange pump is that I will give you a lifetime warranty.  If the pump ever leaks at the weep hole, I will repair and ship back to you at no charge.  This does NOT cover the cost of removing the pump, shipping back to me or ANY misc. damage.  Do remember it is up to you to maintain the cooling system in very good working order and always use distilled water when mixing with antifreeze.

Thanks, stay cool......
