#2Honda CBR1000F 90-91 & 93-96 Hurricane Water Pump Overhaul Parts Kit002, like OEM
Rated 3.5/5 based on 11 customer reviews

#2Honda CBR1000F 90-91 & 93-96 Hurricane Water Pump Overhaul Parts Kit002, like OEM

Available: 3
$89.95

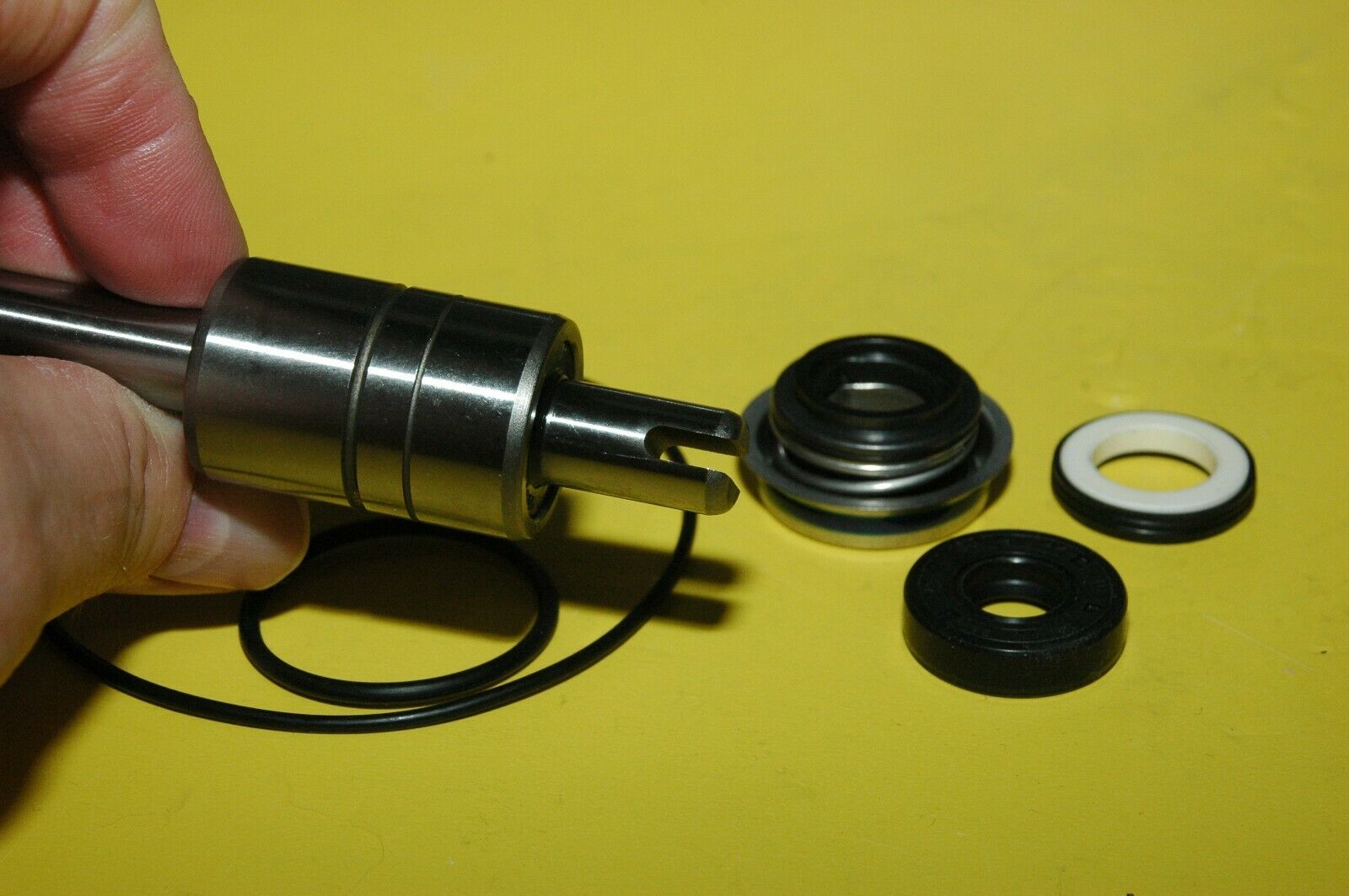

Honda CBR1000F 90-91 & 93-96 Hurricane Water Pump Overhaul Parts Kit, like OEM, All new parts, complete, OEM style bearing, seal set and O-rings.  This is a kit of all the necessary parts required to overhaul the CBR1000F 90-91 & 93-96 Water Pump assembly, p/n19200-MZ2-315 and 19200-MS2-611.  Other superseded numbers listed below. Please use the compatible list to verify this will fit your model, which is in addition to what I have listed in my text above.  I am adding new models when I can confirm the fit and function.  If you don't see your model, please contact me and I may have your model in work.  Thanks

NOTE:  The models I have listed are models I have confirmed, but as these bikes are 30+ years old, they may have an incorrect pump installed, or from a different year.  If my kit has a part that is the incorrect size, usually the spring seal or front cover o-ring, email me and I will send what you need at no charge.  Thanks

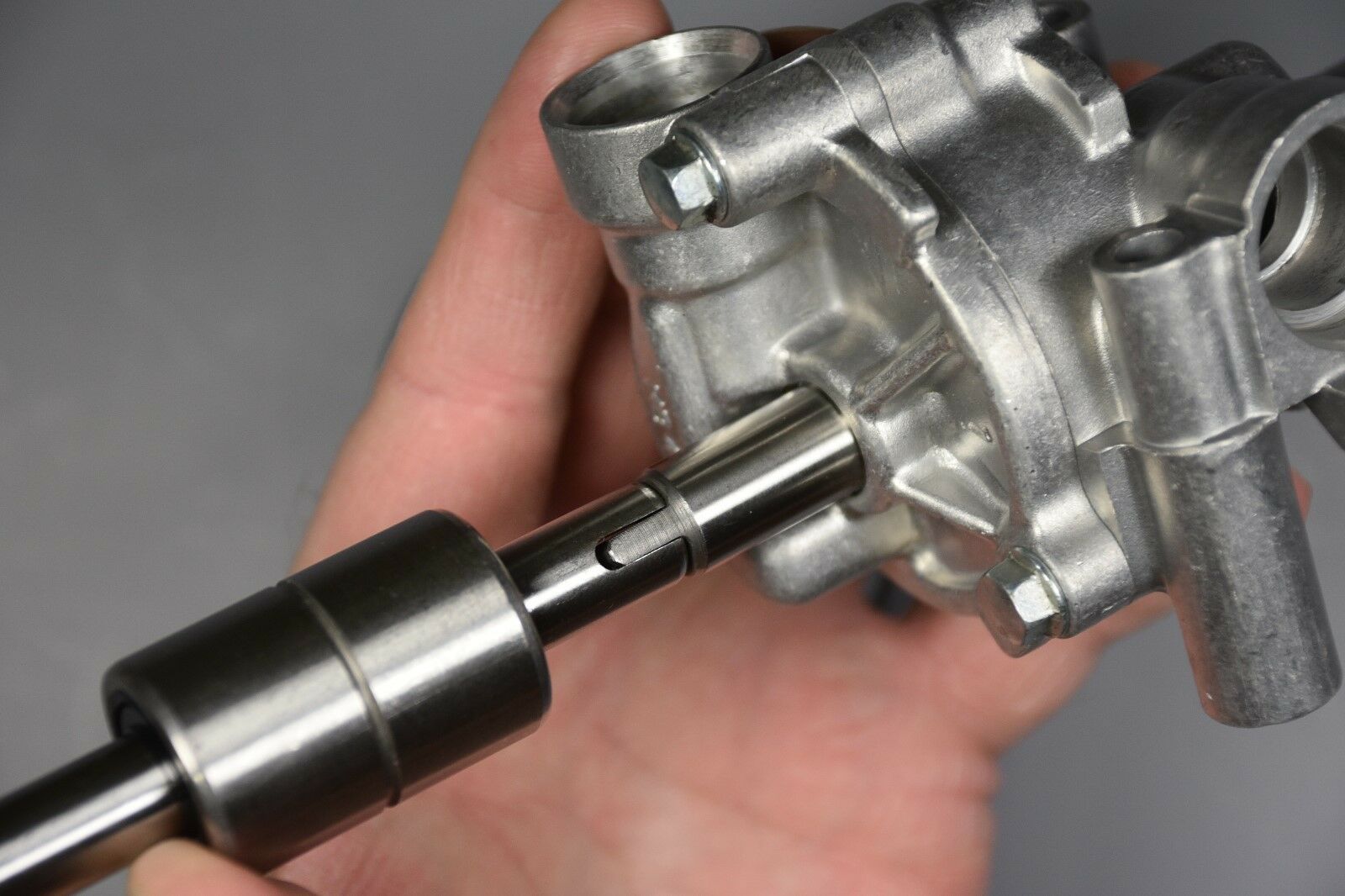

This task WILL require a hydraulic press, it cannot be done any other way.   Please make sure you, and/or your mechanic, understand the requirements to overhaul your pump.  One photo shows the interface with the oil pump, which is critical.

I will include a machined aluminum tool with each kit sold that will make this possible, because I designed this tool and manufacture it, I have not included a photo.  They are made on my CNC lathe and CNC mill to insure accuracy and repeatability.  Also included is a "How To"  document that will prevent you from making some of the mistakes I have.

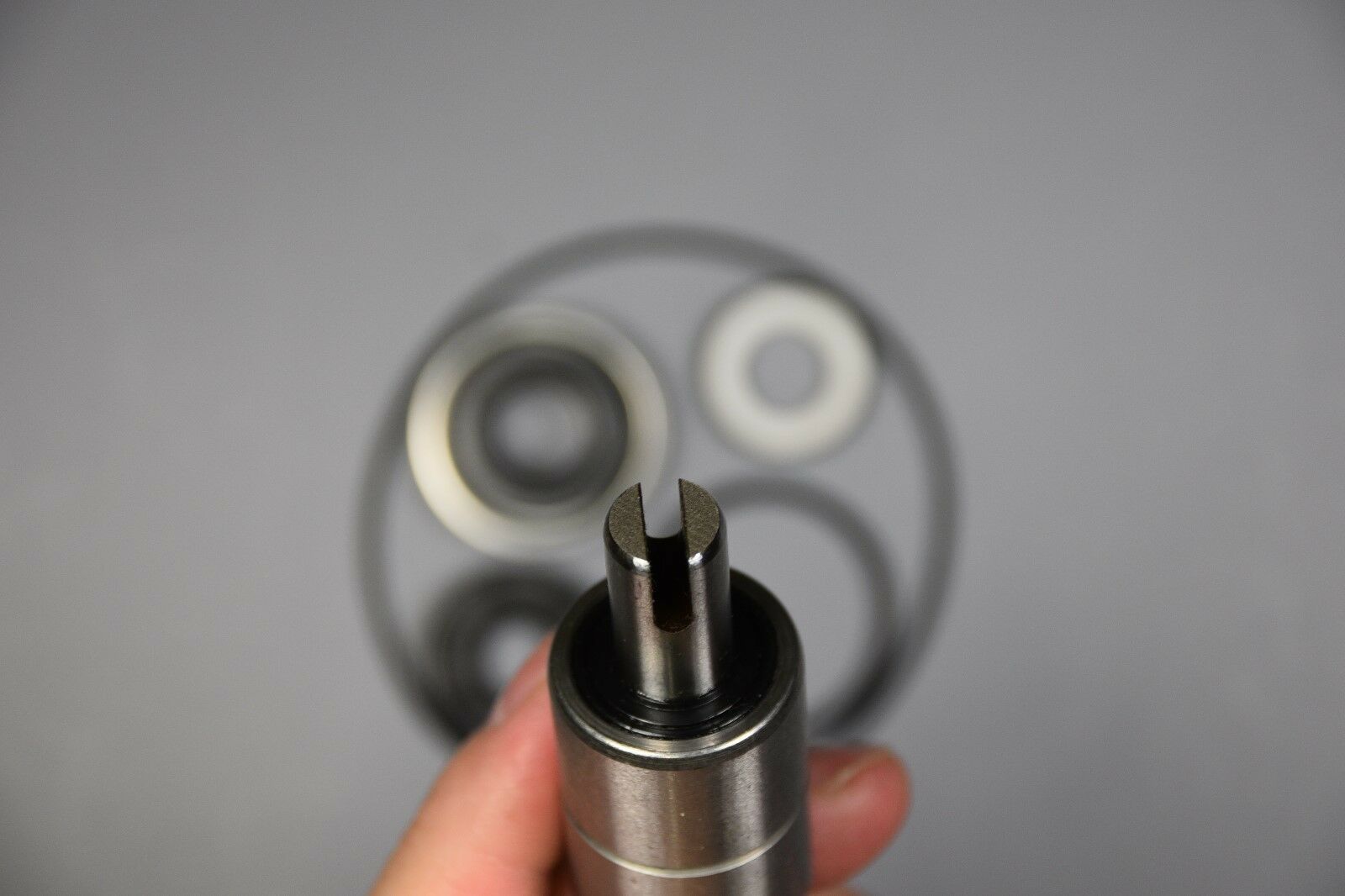

I have spent well over a year working on this and have been able to find a company to manufacture the correct bearing, including the U slot cut precisely with a laser.  It is not machined or ground out with unknown dimensions, it is very accurately centered and fits with the same tolerances as Honda has used.  Also, the main seal is like the one you remove in that the strip of sealant is applied, blue or green band, so no sealer will be needed there.

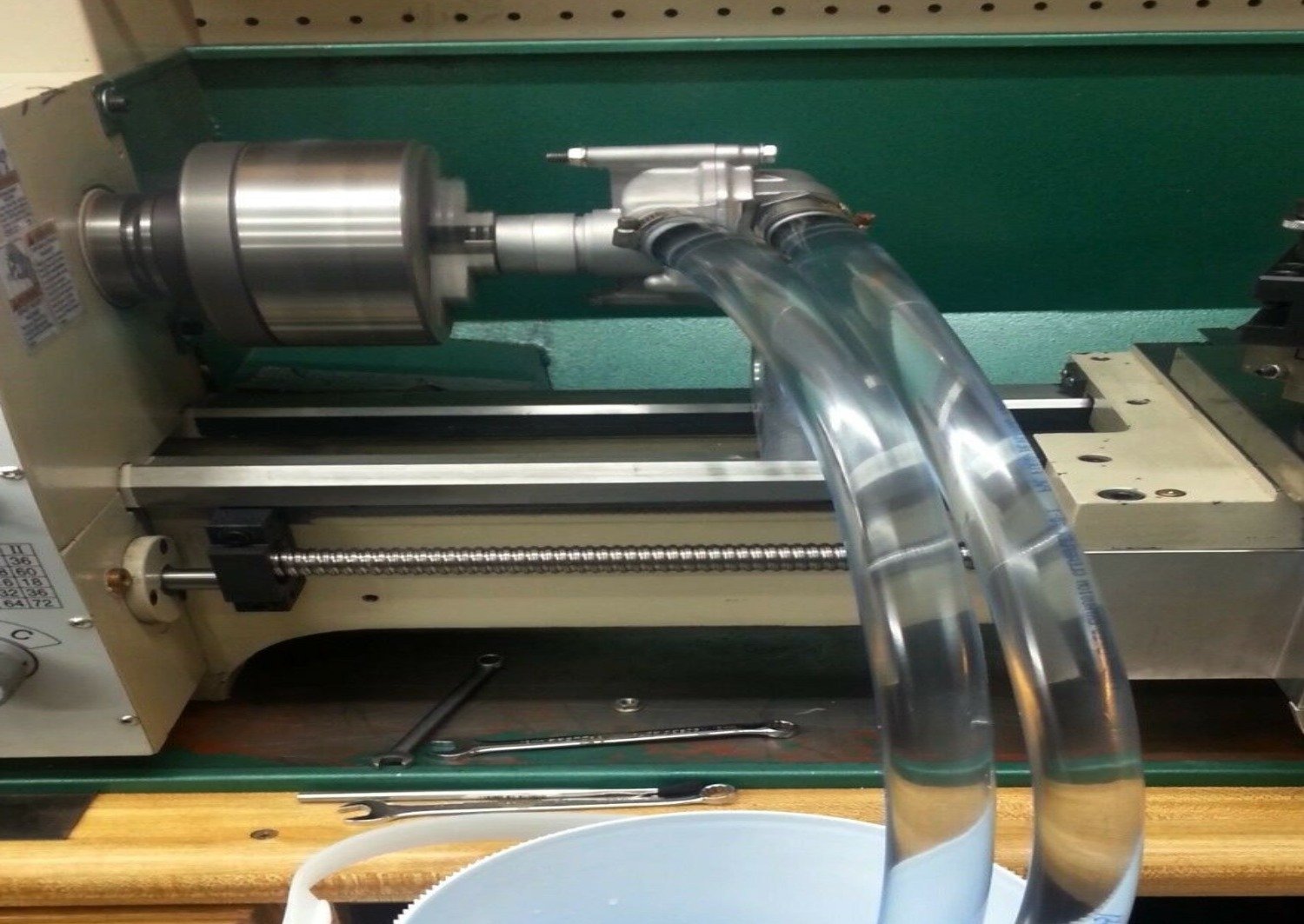

I have included one of my test pumps in the photos.  Like my test pump, all overhauled pumps will be cleaned and micro bead blasted (NO change in dimensions), assembled with care and then tested for leaks, like the photo.

The kits I sell do not have a warranty unless you find a defective part before assembly.  The advantage of having me rebuild your pump, or purchasing an exchange pump is that I will give you a lifetime warranty.  If the pump ever leaks at the weep hole, I will repair and ship back to you at no charge.  This does NOT cover the cost of removing the pump, shipping back to me or ANY misc. damage.  Do remember it is up to you to maintain the cooling system in very good working order and always use distilled water when mixing with antifreeze.

Thanks, stay cool......

Part # = 19200-MZ2-315

Part Description = WATER PUMP ASSEMBLY - (replaces 19200-MZ2-305)

Model Count = 4

CBR1000F-P 1993 1000 1000 Hurricane Street

CBR1000F-R 1994 1000 1000 Hurricane Street

CBR1000F-S 1995 1000 1000 Hurricane Street



CBR1000F-T 1996 1000 1000 Hurricane Street

Part # = 19200-MS2-611

Part Description = WATER PUMP - (replaces 19200-MS2-610)

Model Count = 2

CBR1000F-L 1990 1000 1000 Hurricane Street



CBR1000F-M 1991 1000 1000 Hurricane Street

Honda CBR1000F 90-91 & 93-96 Hurricane Water Pump Overhaul Parts Kit, like OEM, All new parts, complete, OEM style bearing, seal set and O-rings.  This is a kit of all the necessary parts required to overhaul the CBR1000F 90-91 & 93-96 Water Pump assembly, p/n19200-MZ2-315 and 19200-MS2-611.  Other superseded numbers listed below. Please use the compatible list to verify this will fit your model, which is in addition to what I have listed in my text above.  I am adding new models when I can confirm the fit and function.  If you don't see your model, please contact me and I may have your model in work.  Thanks

NOTE:  The models I have listed are models I have confirmed, but as these bikes are 30+ years old, they may have an incorrect pump installed, or from a different year.  If my kit has a part that is the incorrect size, usually the spring seal or front cover o-ring, email me and I will send what you need at no charge.  Thanks

This task WILL require a hydraulic press, it cannot be done any other way.   Please make sure you, and/or your mechanic, understand the requirements to overhaul your pump.  One photo shows the interface with the oil pump, which is critical.

I will include a machined aluminum tool with each kit sold that will make this possible, because I designed this tool and manufacture it, I have not included a photo.  They are made on my CNC lathe and CNC mill to insure accuracy and repeatability.  Also included is a "How To"  document that will prevent you from making some of the mistakes I have.

I have spent well over a year working on this and have been able to find a company to manufacture the correct bearing, including the U slot cut precisely with a laser.  It is not machined or ground out with unknown dimensions, it is very accurately centered and fits with the same tolerances as Honda has used.  Also, the main seal is like the one you remove in that the strip of sealant is applied, blue or green band, so no sealer will be needed there.

I have included one of my test pumps in the photos.  Like my test pump, all overhauled pumps will be cleaned and micro bead blasted (NO change in dimensions), assembled with care and then tested for leaks, like the photo.

The kits I sell do not have a warranty unless you find a defective part before assembly.  The advantage of having me rebuild your pump, or purchasing an exchange pump is that I will give you a lifetime warranty.  If the pump ever leaks at the weep hole, I will repair and ship back to you at no charge.  This does NOT cover the cost of removing the pump, shipping back to me or ANY misc. damage.  Do remember it is up to you to maintain the cooling system in very good working order and always use distilled water when mixing with antifreeze.

Thanks, stay cool......

Part # = 19200-MZ2-315

Part Description = WATER PUMP ASSEMBLY - (replaces 19200-MZ2-305)

Model Count = 4

CBR1000F-P 1993 1000 1000 Hurricane Street

CBR1000F-R 1994 1000 1000 Hurricane Street

CBR1000F-S 1995 1000 1000 Hurricane Street



CBR1000F-T 1996 1000 1000 Hurricane Street

Part # = 19200-MS2-611

Part Description = WATER PUMP - (replaces 19200-MS2-610)

Model Count = 2

CBR1000F-L 1990 1000 1000 Hurricane Street



CBR1000F-M 1991 1000 1000 Hurricane Street
