Chris Craft Sherwood 283, 307, 327Q, 327F, 427, 431 Engines, Water Pump Overhaul Kit
Rated 3.5/5 based on 11 customer reviews

Chris Craft Sherwood 283, 307, 327Q, 327F, 427, 431 Engines, Water Pump Overhaul Kit

Available: 7
$159.95

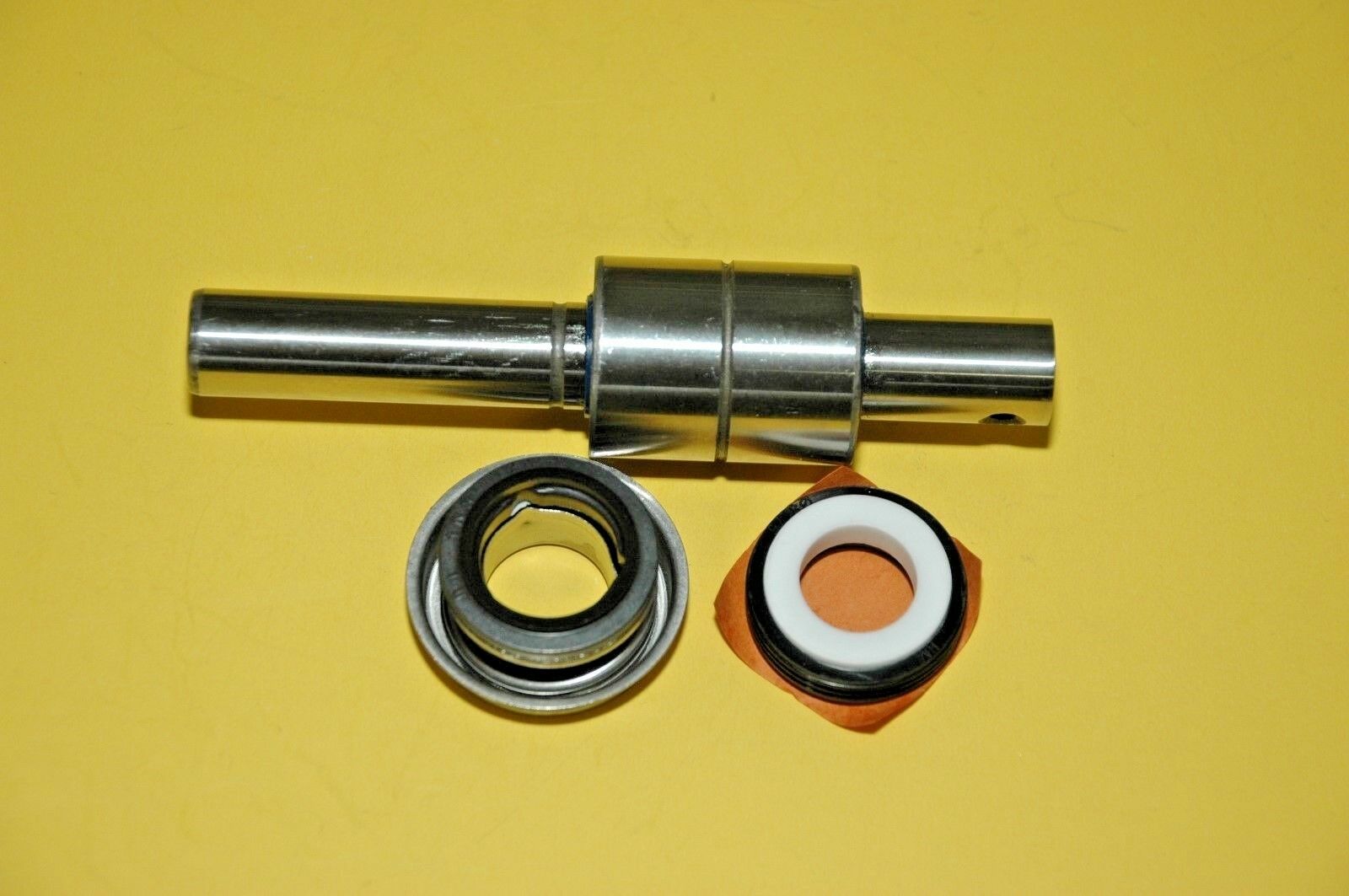

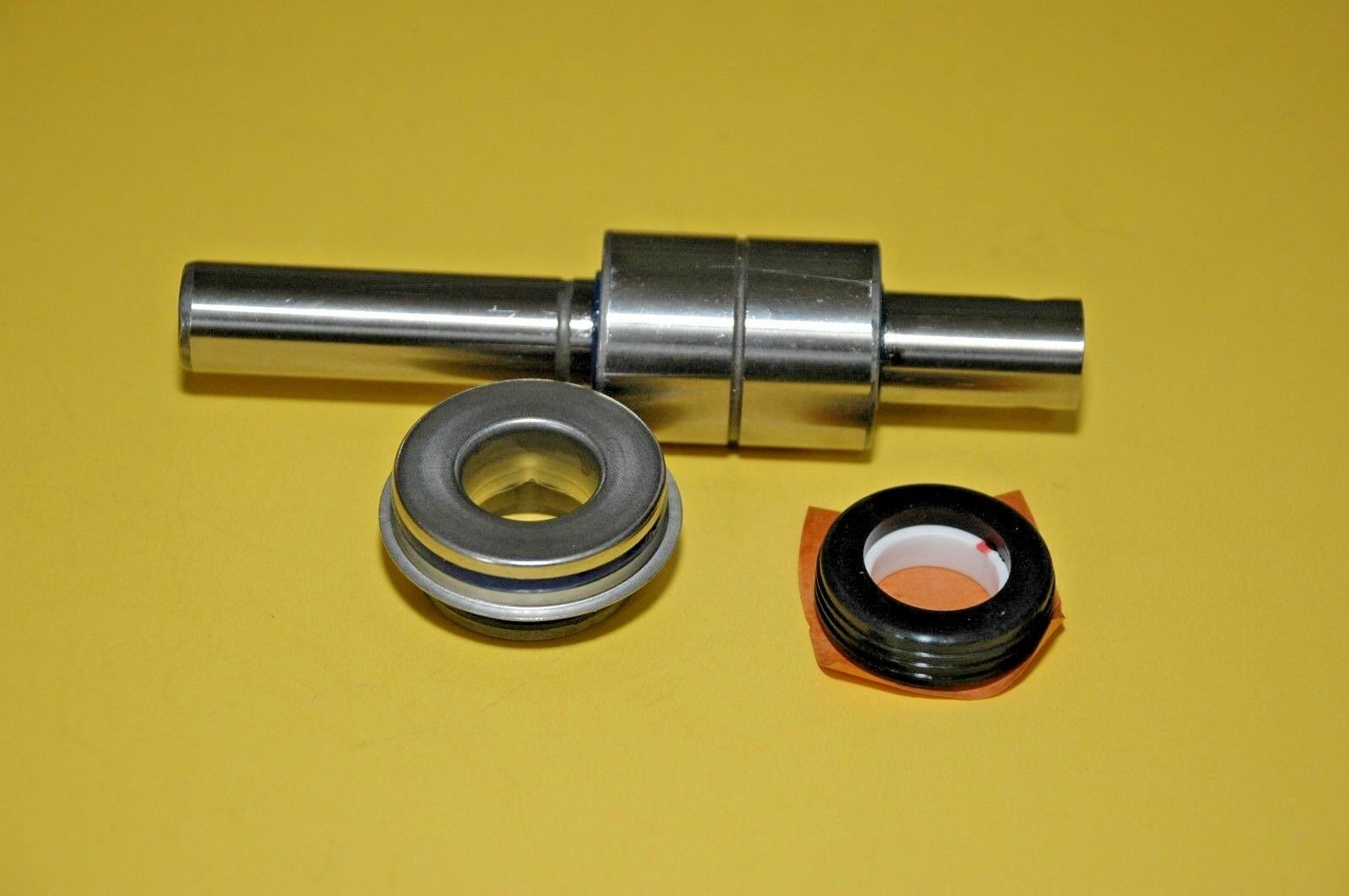

Vintage Chris Craft Circulating Water Pump Overhaul Kit, with Sherwood Pumps.  Includes: New Bearing (Sherwood P/N 14055) and Spring-Loaded Mechanical Seal Assembly (Sherwood P/N 10577).  This kit will fit the models I have listed below, maybe others.  You will receive a new NSK bearing as well as a new mechanical seal.  THE PUMPS SHOWN IN EXAMPLE PHOTOS ARE NOT INCLUDED.

Engine Model/Size

Sherwood Part Number

Main Pump Seal

Bearing P/N

Model 307-327Q

D10C

10577

14055

Model 307-327Q

D15CC

10577

14055

Model 283, 327F

Q10825CC

10577

14055

Model 283, 327F

Q10830C

10577

14055

Model 427

S11110C

10577

14055

Model 427

S11115CC

10577

14055

Model 431

N10490CC

10577

14055

Model 431

N10580C

10577

14055



I will also offer an overhaul service if you would like to send me your pump, it is a separate listing on my site.

For several years I have been rebuilding water pumps for the older Honda motorcycles and have the equipment an ability to make tooling for this process.   I have overhauled 275+ Honda water pumps to date.

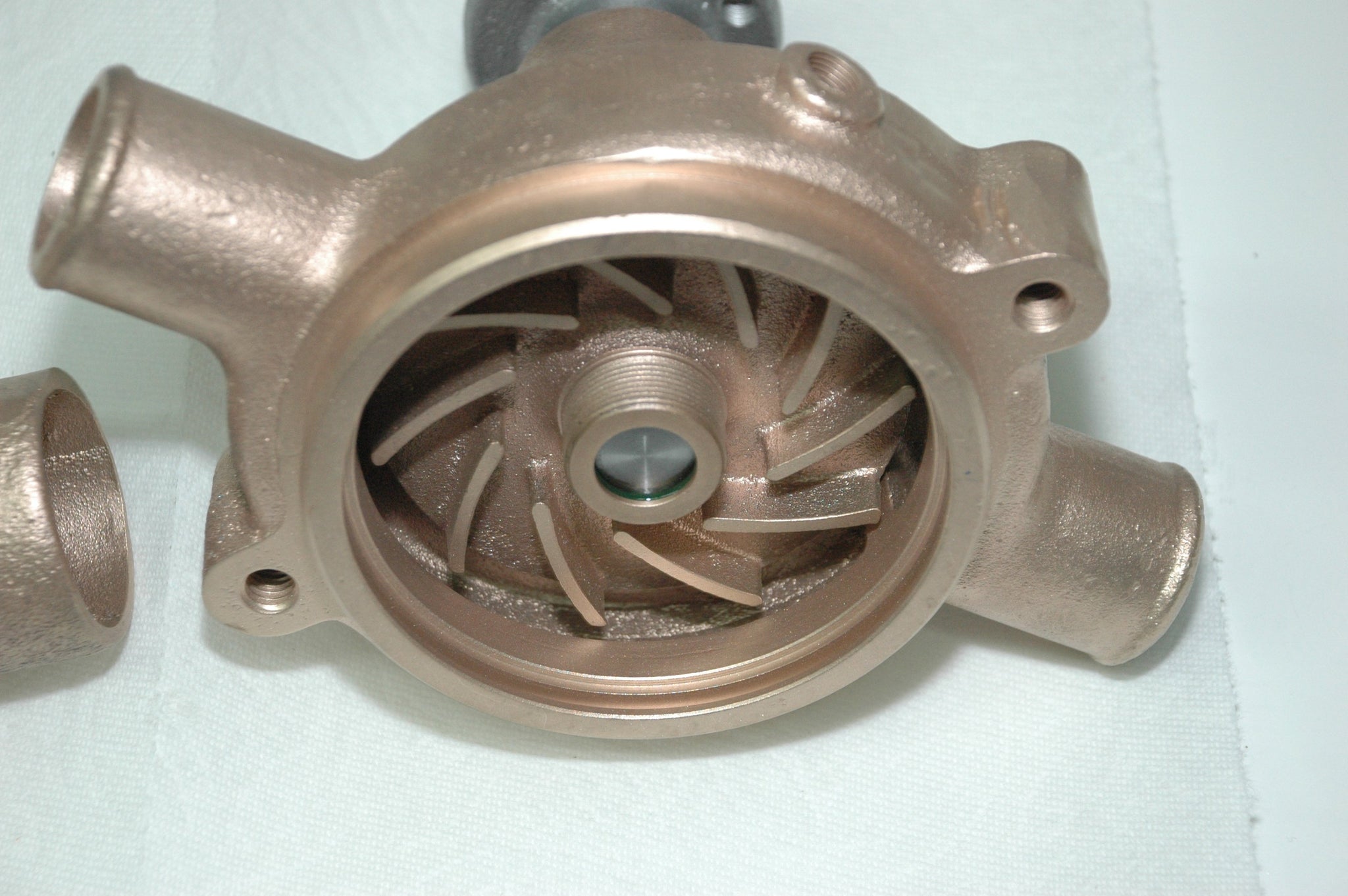

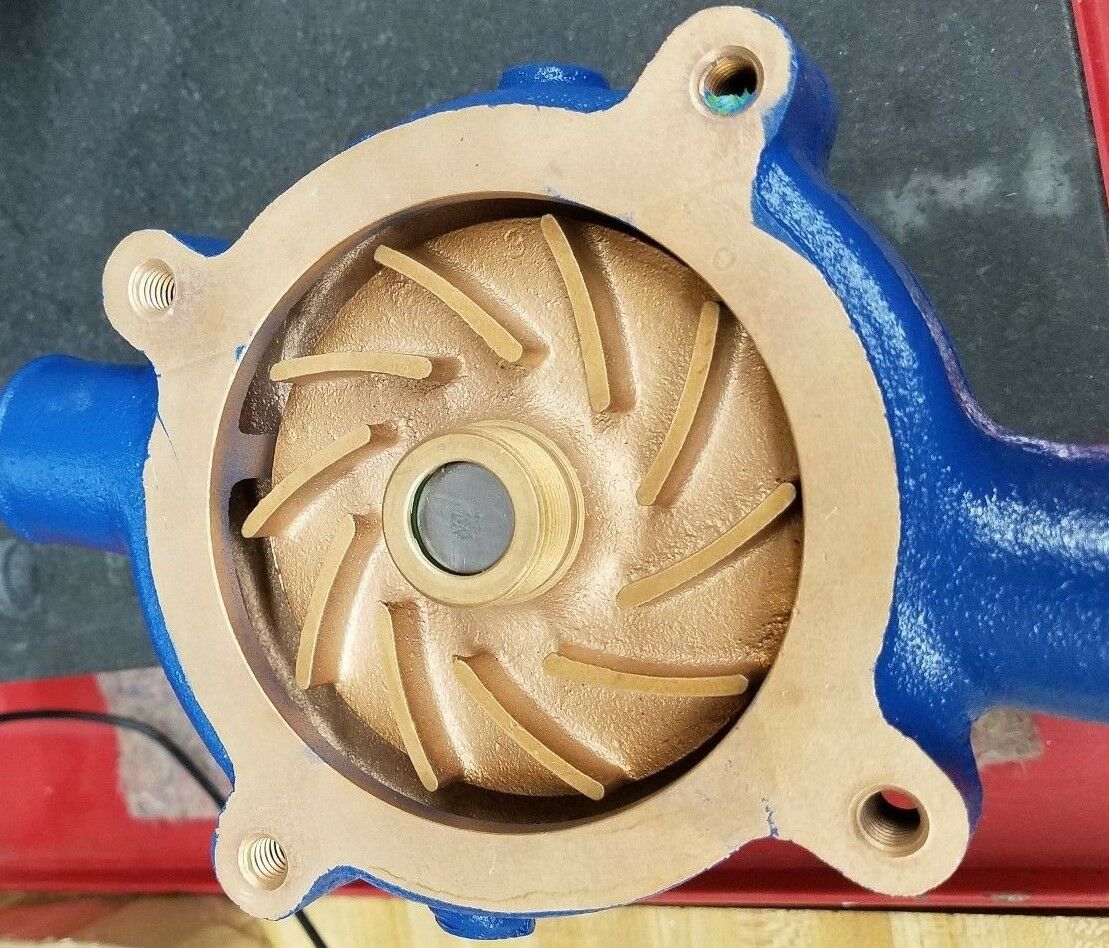

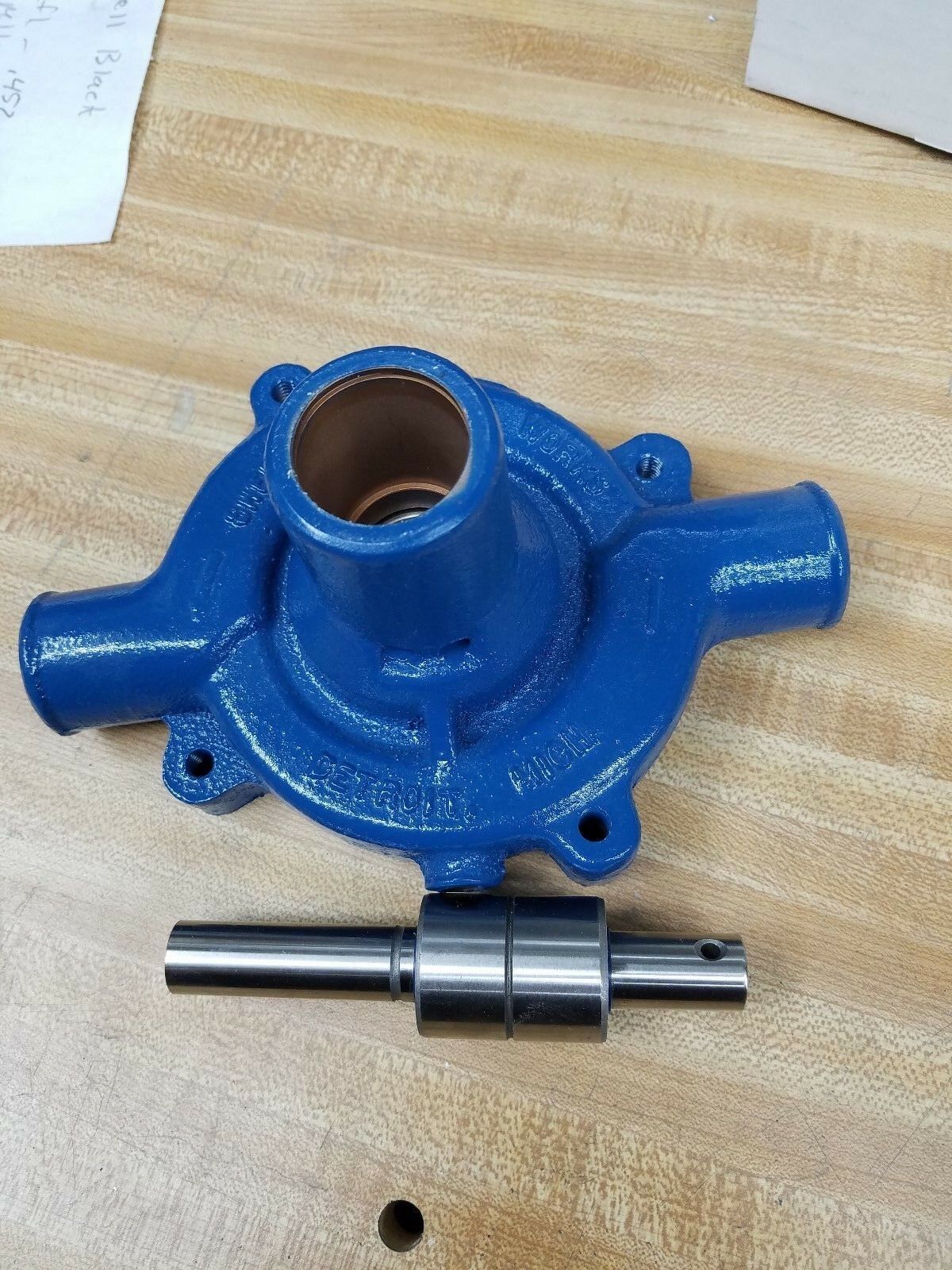

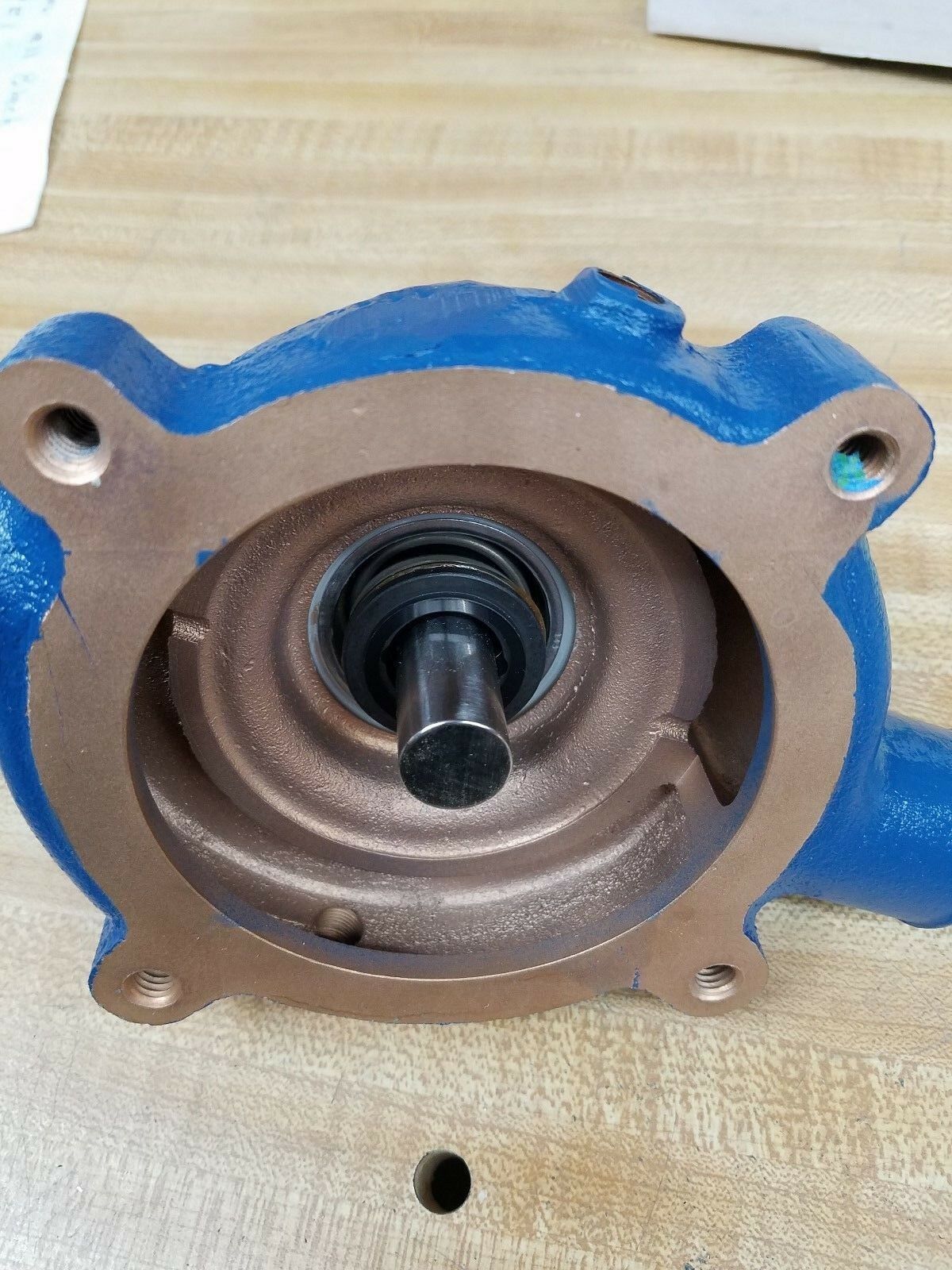

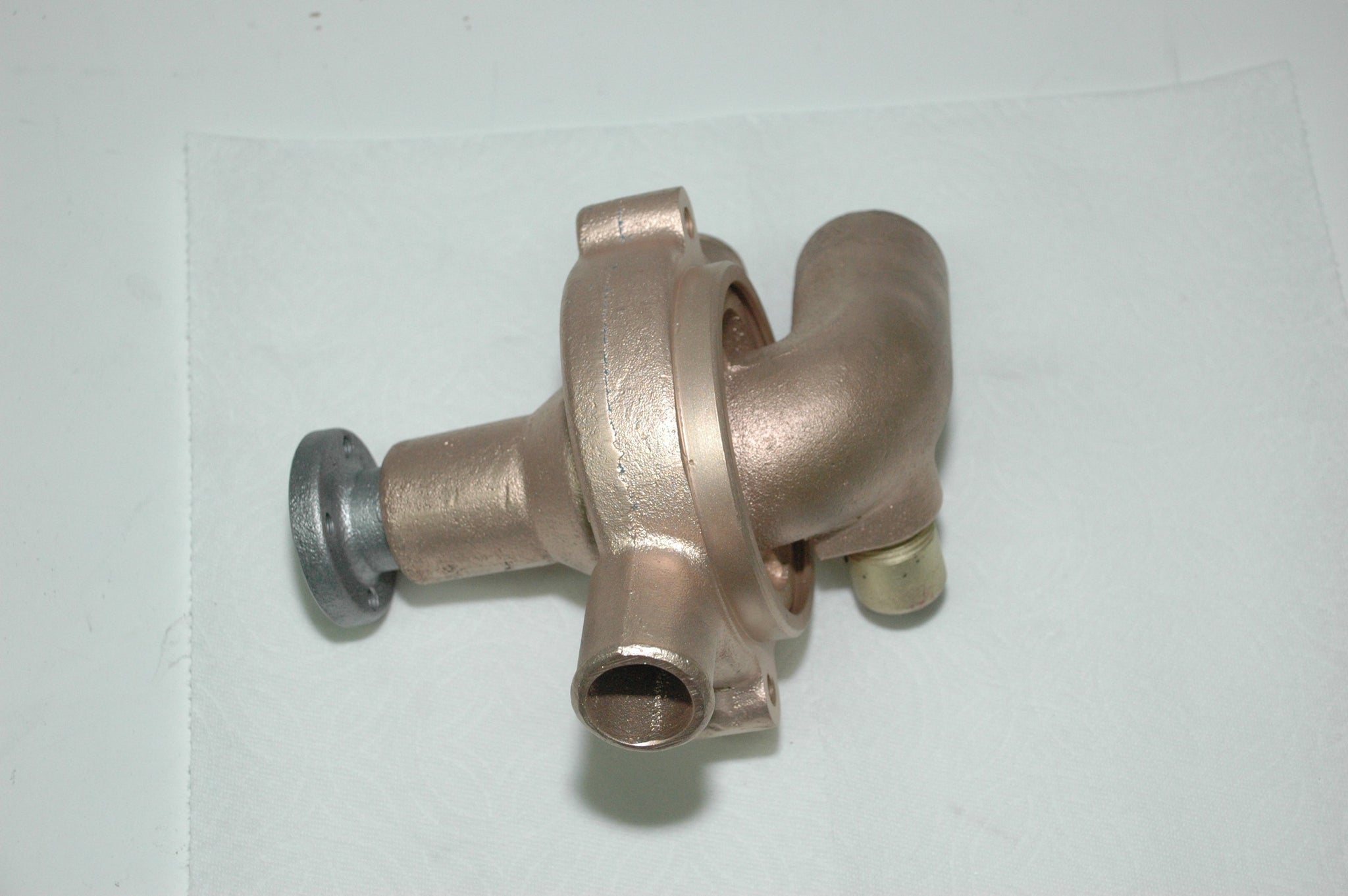

This kit and my overhaul service for these vintage Chris Craft boat engines started with my brothers 67 Chris Craft Constellation with twin 300HP Ford 427 engines. I had a visit with him this last summer and he had one that was leaking, so we sent them to me in Arizona.  I have done the research to find parts for the overhaul.  The photos in my listing are of one of his pumps during the overhaul process for him.

The process is not that difficult, but you will need to make some tools to get the pulley removed.  The pressed on pulley, at least for his boat, was a casting and can be easily damaged.  So, tooling to support the pulley 100% on its underside is very important during pressing it off.

I have no plans for other older models of Chris Craft pumps but email me if you have something not listed above and I will research to see if I can help you with it.   I am NOT a boat person, so I will not know specific questions about Chris Craft models, engines etc.

Vintage Chris Craft Circulating Water Pump Overhaul Kit, with Sherwood Pumps.  Includes: New Bearing (Sherwood P/N 14055) and Spring-Loaded Mechanical Seal Assembly (Sherwood P/N 10577).  This kit will fit the models I have listed below, maybe others.  You will receive a new NSK bearing as well as a new mechanical seal.  THE PUMPS SHOWN IN EXAMPLE PHOTOS ARE NOT INCLUDED.

Engine Model/Size

Sherwood Part Number

Main Pump Seal

Bearing P/N

Model 307-327Q

D10C

10577

14055

Model 307-327Q

D15CC

10577

14055

Model 283, 327F

Q10825CC

10577

14055

Model 283, 327F

Q10830C

10577

14055

Model 427

S11110C

10577

14055

Model 427

S11115CC

10577

14055

Model 431

N10490CC

10577

14055

Model 431

N10580C

10577

14055



I will also offer an overhaul service if you would like to send me your pump, it is a separate listing on my site.

For several years I have been rebuilding water pumps for the older Honda motorcycles and have the equipment an ability to make tooling for this process.   I have overhauled 275+ Honda water pumps to date.

This kit and my overhaul service for these vintage Chris Craft boat engines started with my brothers 67 Chris Craft Constellation with twin 300HP Ford 427 engines. I had a visit with him this last summer and he had one that was leaking, so we sent them to me in Arizona.  I have done the research to find parts for the overhaul.  The photos in my listing are of one of his pumps during the overhaul process for him.

The process is not that difficult, but you will need to make some tools to get the pulley removed.  The pressed on pulley, at least for his boat, was a casting and can be easily damaged.  So, tooling to support the pulley 100% on its underside is very important during pressing it off.

I have no plans for other older models of Chris Craft pumps but email me if you have something not listed above and I will research to see if I can help you with it.   I am NOT a boat person, so I will not know specific questions about Chris Craft models, engines etc.
